10-12 WEEK ESTIMATED LEADTIME
~SOLD IN PAIRS~

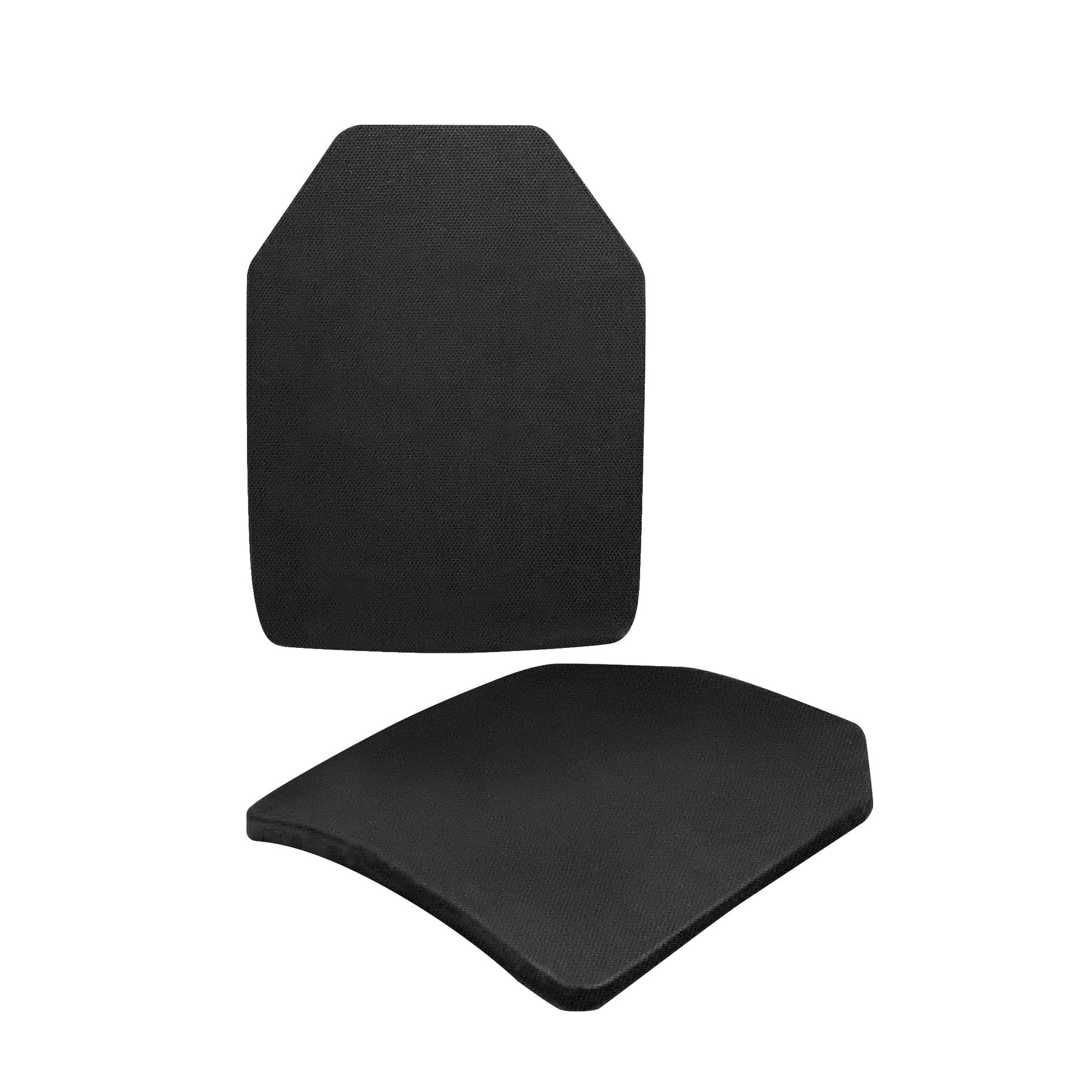

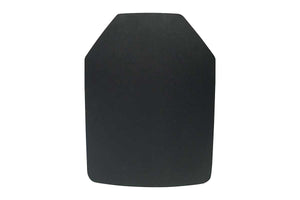

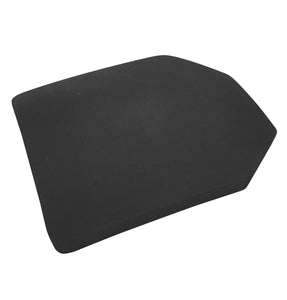

The 26300 is a high end ballistic solution comprised of a Boron Carbide ceramic core, supported by a lightweight Dyneema HB212 backer plate.
The result is a lightweight, Triple Curve, NIJ 04 Level IV certified ballistic solution capable of defeating multiple hits of 5.56 (M193, M855, M855A1), 7.62x39 (FMJ, M1943, API), 7.62 x 51mm (M80 Ball/M61AP, M80A1) and is also capable of stopping 7.62 x 54R (LPS/B-32API) and 30.06 AP M2.
This is an extraordinary plate at a discounted price.
Fits all standard carriers of the same size. Match plates to carrier size.
Sizes:
Small- 8.75”x11.75” 5 lbs
Medium- 9.5”x12.50” 5.75 lbs
Large- 10.25”x13.25” 6.85 lbs
XL- 11”x14” 7.5 lbs
SPECS
- Thickness: .80"
- Level: IV
Rounds Defeated:
| Weapon |
Ammunition |
STRIKING
VELOCITY
ft/s
|
STRIKING
VELOCITY
m/s
|
| Rifle M-1 |
30.06 AP M2 |
2880 |
878 |
| Rifle FN FAL |
7.62x51mm - M80 Ball |
2780 |
847 |
| Rifle FN FAL |
7.62x51mm - M61 AP |
2780 |
847 |
| Rifle M-16/AR-15 |
5.56x45mm-M193/M855/
M855A1 |
3180 |
969 |
|
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-LPS |
2850 |
869 |
|
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-L/LPS/B-32 API |
2850 |
869 |
| Rifle AK-47,M,SKS |
7.62x39mm-API |
2400 |
732 |
| Rifle AK-47,M,SKS |
7.62x39mm-Ball/Steel Core |
2400 |
732 |
Weights and measurements are nominal
