2-4 WEEK ESTIMATED LEADTIME
~SOLD IN PAIRS~
These are without question the best deal available for top quality body armor plates. The materials used in the fabrication of these plates allows for projectiles to be absorbed within the plate itself, preventing dangerous spall as is common with steel plates. Don't rely on your carrier to stop high speed bullet fragmentation.

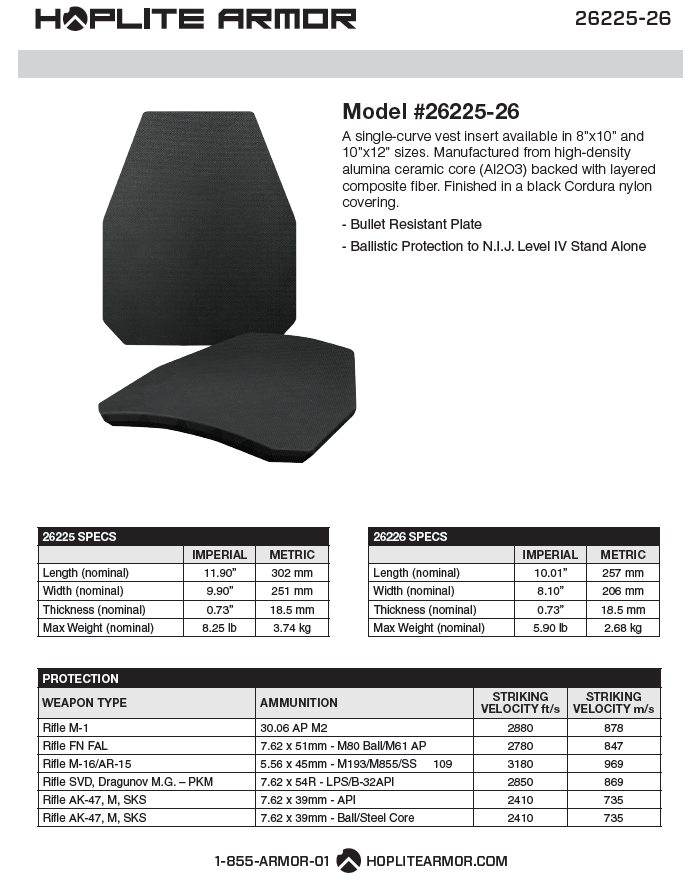

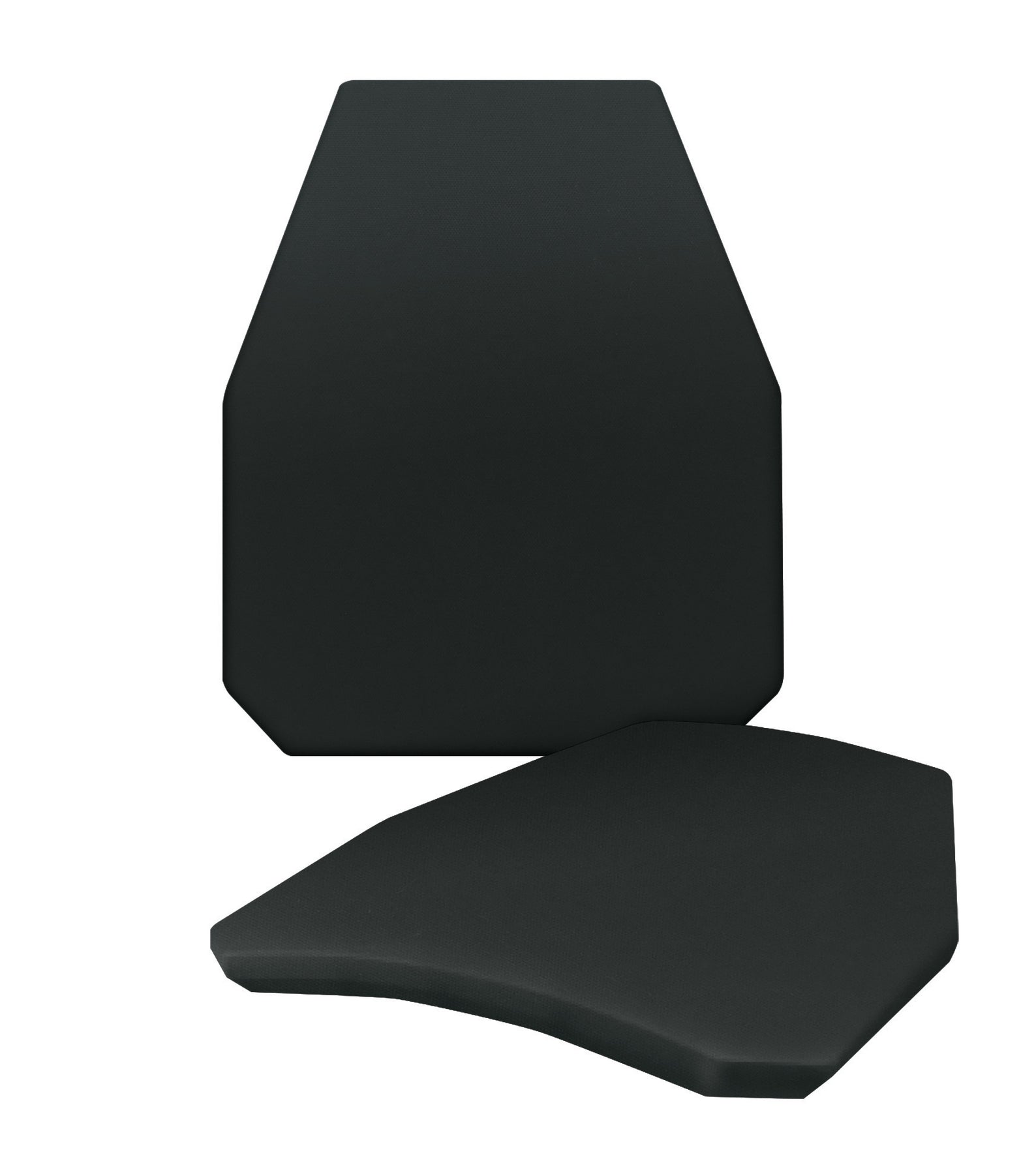

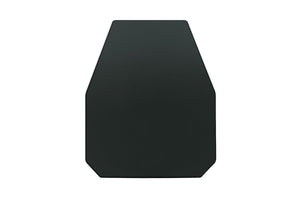

Our 8x10 and 10×12 inch single-curve hard armor swimmer cut plate is certified NIJ 0101.05 Level IV Stand Alone. Manufactured from high-density alumina ceramic core (Al2O3) backed with layered polymer composite fiber.
All our Hard Armor Plates are Made in the USA by LTC, Leading Technology Composites, the worlds largest and most respected body armor manufacturer.
Specific weights and sizes are listed below. All figures are nominal. Some variation based on manufacturing tolerance may apply.
Fits all standard carriers/8x10 small carrier
Specs:
-
Weight: 5.9 Lbs
- Thickness: .73"
- Level: IV
Rounds Defeated:
Weapon |
Ammunition |
STRIKING VELOCITY ft/s
|
STRIKING VELOCITY m/s
|
Rifle M-1 |
30.06 AP M2 |
2880 |
878 |
Rifle FN FAL |
7.62x51mm - Ball/AP |
2780 |
847 |
Rifle M-16/AR-15 |
5.56x45mm-M193/M855/ss109 |
3025 |
922 |
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-L/LPS/B-32 API |
2850 |
869 |
Rifle AK-47,M,SKS |
7.62x39mm-API |
2410 |
735 |
Rifle AK-47,M,SKS |
7.62x39mm-Ball/Steel Core |
2410 |
735 |
Size:
8" x 10"
Finished in Cordura Nylon Covering.
